Genitec PCB Desktop Router Machine for Prototype ZM100

Name: Genitec PCB Desktop Router Machine for Prototype ZM100
Brand: Genitec
Price: 1500 USD

China Genitec PCB Desktop Router Machine for Prototype ZM100 factory

Brand Name : Genitec

Model Number : ZM100

Certification : CE, RoHS

Place of Origin : China

MOQ : 1 set

Price : USD1500-10000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 Sets per Month

Delivery Time : 5-45 days

Packaging Details : Vacuum packed in wooden cases

PCB Size : 330mm* 280mm

X,Y Axis Cutting Speed : 0~100mm/s

Machine Precision : ±0.01mm

Z Axis Route : 50mm

X, Y, Z Control Method : Adopts Card and Manual Editor

X, Y, Z Drive Method : Stepping Servo Motor

Cutting Precision : ±0.1mm

Dust Collector : Upper Dust Collector

Spindle Speed : MAX40000rpm

Programme 1 : Whole PCB Scanning Function

Programme 2 : Offline Program Function

Contact Now

Genitec We are PCB separator expert. We provide PCB depaneling total solution.

Genitec founded in Taiwan in 1993. We have two factories for over 20000 square meters.

We produce most kind of PCB separator. Including PCB router, laser PCB separator, V-cut,

PCB/FPC punching machine.

If you have any project about PCB depaneling, welcome your inquiry, we will provide you solution.

Feature

Design for small quantity or prototype production depaneling.

With upper dust collector.

Small size, can be inline use.

Provide customized service.

Uses a high-speed spindle to drive the milling bit to cut the PCBs according to the design route;

Provide customer with a high-performance,high-security,high-stability industrial equipment platform

(High-precision integrated motion control card,stepping motor,precision slide rail) simple operation;

Suitable for the division of puzzles and semi-finished products;

With high-intensity dust collection system,keep PCB and working surface clean.

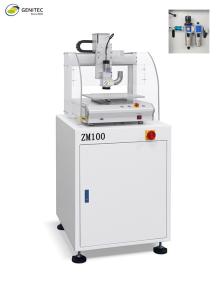

Genitec PCB Desktop Router Machine for Prototype ZM100

Some advantage

(1) The cutting stress is smaller,about 1/10 of the punching type,and 1/100 of the hand-held,so as to prevent chis such as

ceramic capacitors from being damaged during the cutting process;

(2) A variety of shapes such as straight lines and arc lines can be cut on the PCB, so the PCB design are greatly increased.

(3) The cutting precision is high,and the cutting surface is smooth without burrs,which meets the customer’s needs for

high-quality production technology.

(4) Replaces manual cutting method/ V-CUT/Punch cutting ,depaneling PCB with high-speed spindle,

will not cause damage to the components on the PCB,the cutting surface is flat,no burrs and the product production is improved.

(5) Powerful upper suction filter dust collection device ,cleanly solve the problem of cutting dust.

(6) Fully-enclosed machine,which automatically puts products in and out by fixtures to protect the operator’s safety.

(7) Grinding ball screw and linear slide.

(8) Equipped with the teaching function of handle positioning operation point.

(9) Specifications can be made according to customer requirements.

PCB Size	330mm* 280mm
X,Y Axis Cutting Speed	0~100mm/s
Machine Precision	±0.01mm
Z axis Route	50mm
X,Y,Z Control Method	Adopts Card and Manual Editor
X,Y,Z Drive Method	Stepping Servo Motor
Cutting Precision	±0.1mm
Spindle Speed	MAX40000rpm
Machine Voltage	220V 50/60HZ
Power Consumption	1KVA
Dust Collector	Upper Dust Collector
Dust Collector Voltage	380V2HP
Separator Outside Size	550mm550mm550mm
Dust Collector Outside Size	680mm400mm900mm

Genitec PCB Desktop Router Machine for Prototype ZM100 Images
